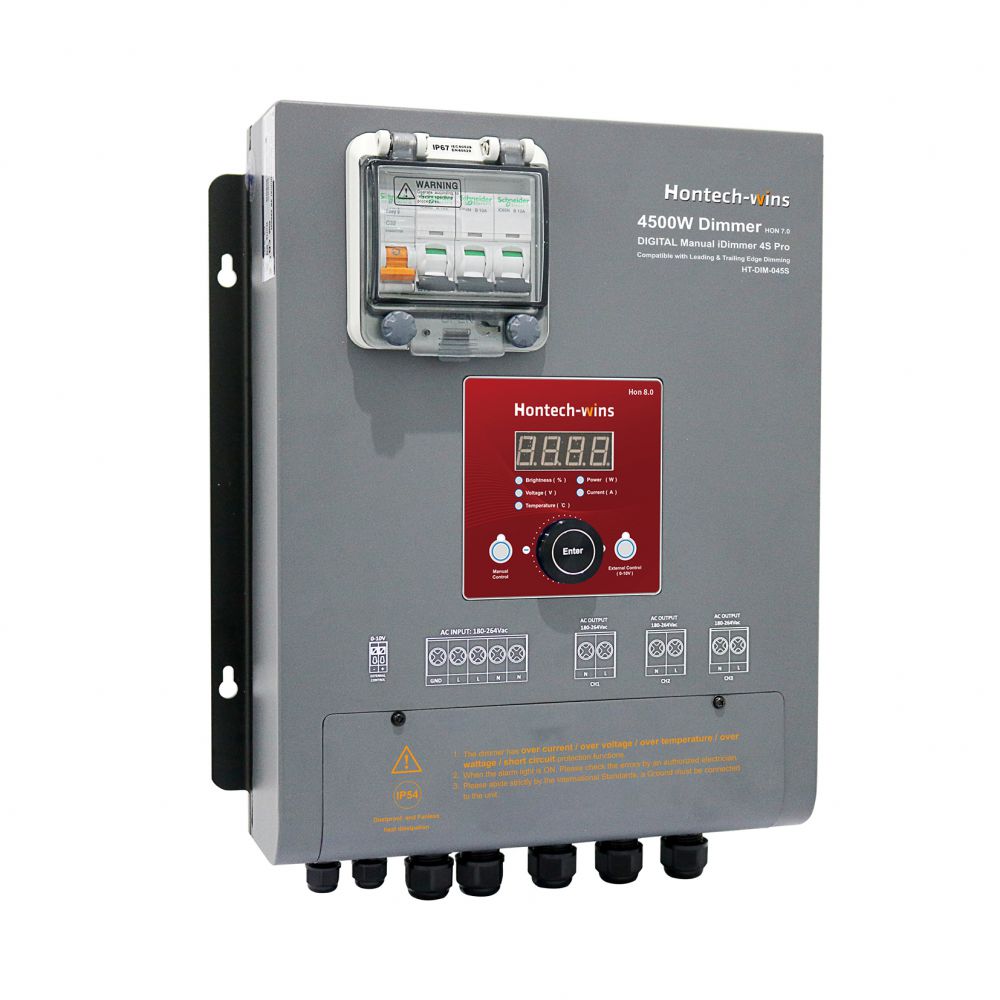

Manual Dimmer

Back to list


  • Model No

    HT-DIM-045S

  • AC input

    230VAC
    120VAC
    50/60Hz Singel Phase

  • Input Current

    26A Max

  • Safety

    Anti 6KV Lightning Surge
    Dim to 0%,Dry Switch-Contact

  • Performance

    Harmonic Current Inhibition

  • Optimal Brightness level

    0-100%

  • Five Protections

    OVP (Over Voltage Protection)
    UVP( Under Voltage Protection)
    OPP (Over Power Protection)
    OTP (Over Temperature Protection)
    OCP (Over Current Protection/
    Short Circuit Protection

  • Dimensions

    354*270*70mm

  • Weight

    5.5kg

  • "Permitted ambient temperature

    -20℃-50℃

  • Storage temperature

    -30℃-80℃"

  • IP Grade

    IP54

  • External Control

    0-10V
