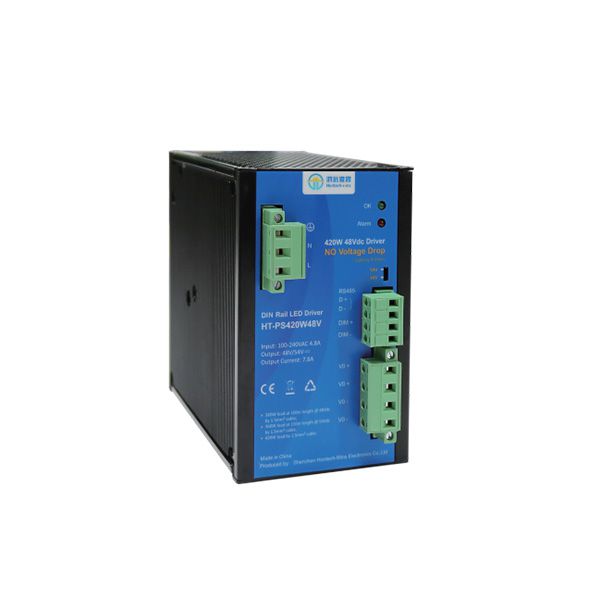

Features of The No Voltage Drop Dimming Power Supply:
•DC Constant/No Voltage Drop Dimmable Driver( Comply with ClassⅠ&ⅡLED Lamps)
•Universal AC input / full voltage range, Optional 48Vdc/54Vdc output voltage
•Active Power Factor Correction Design, High Efficiency, Excellent Performance
•A Patent Digital Dimmable Solution: More accurate and soft.
•Long Lifetime: Natural Heat Dissipation, a longer lifespan of over 50,000 hours
•DIN Rail: Easy Installation, Quick installation with plug-and-play connectors
•IP67: High protection grade for dust and water, can be used in a bad environment
The no voltage drop dimming power supply is popular use in poultry lighting systems, Hontech Wins can provide special versions of dimming power supply according to customer requirements.
How to solve the voltage drop by using 48Vdc lighting systems?
By using Hontech 48Vdc no voltage drop solution;
With Hontech no voltage drop 420W power supply it is possible to control the brightness from 0 up to 100% and with brightness at the same level in the same line.
220Vac @ 420W
120Vac @ 360W
3.5A
47-63Hz
48Vdc/54Vdc 0-7.8A
0-100%
>0.98
5%,@230Vac, 100% Load
IP54
93% @230Vac
90% @115Vac
Over voltage
Short circuit
Over Temperature
-25℃-50℃
20-%-90% RH non-condensing
-35℃-80℃
CE CB, SAA
(UNIT
